Oil & Gas Case Study — Offshore oil field, Middle East

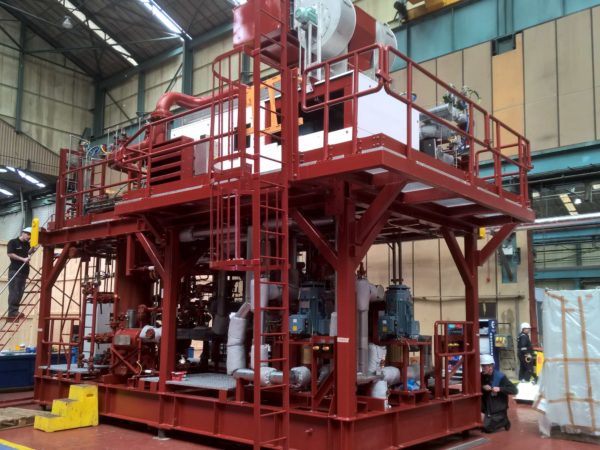

H0 fire rated Acoustic Enclosures installation at an offshore oil field in the Middle East.

APPLICATION DETAILS:

Screw compressors at an offshore oil field in the Middle East were producing excessive noise levels.

SUPPLY SCOPE:

Design, supply and installation of two H0 fire rated acoustic enclosures with overall dimensions of approx. 3.2m long x 2.85m wide x 2.7m high. The enclosures were supplied complete with forced ventilation system and associated ductwork.

SPECIAL REQUIREMENTS

The acoustic enclosures were designed with H0 fire rated panelling to suit the project safety requirements. Ventilation for the enclosures was provided by a run and standby fan arrangement, with attenuation and fire dampers. Inlet ductwork running to the enclosure was also supplied complete with filtration. Maintenance access was provided via a series of lift-off panels.

ACOUSTIC PERFORMANCE:

The acoustic enclosures were assessed and designed to reduce noise from the compressors to 85dBA at 1m
